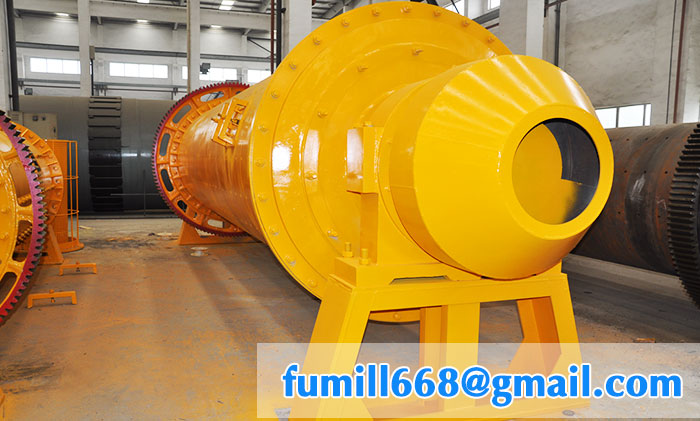

Wet type ball mill are mostly used in the industry production. It is to increase the high grinding efficiency under the ball mill grinding and striking, from which the granularity is even and no flying dust with little noise, being the most universal powder machine in the benefication as powder grinding the ferrous metal like gold, silver, plumbum, zinc,copper,molybdenum,manganese,tungsten etc, as the nonmetal powder grinding like graphite,feldspar, potash feldspar, phosphorus ore, fluorite, clay, and swell soil etc. The wet type ball mill need to add the liquid into the grinding ball media auxiliary (water or ethanol). The material output gate is trumpet shape, with screw device inside, easy to discharging the material.
Model | Loading Weight (ton/time) | Rotate Speed (r/min) |
Reference Power(KW) | Liner Material |
600×700 | 0.05 | 50 | 2.2 | Ceramics, Silica, Rubber, Metal(Equipped power will be a little different according to the liner material and the processed material) |
800×600 | 0.075 | 42 | 3 | |
900×1200 | 0.2 | 38.5 | 5.5 | |
1300×1500 | 0.5 | 33 | 7.5 | |
1500×1800 | 1.2 | 28.5 | 11 | |
1800×2000 | 1.5 | 24 | 15 | |
2600×2800 | 5 | 16.5 | 37 | |
3000×3800 | 10 | 14.5 | 57.2 | |
3200×4600 | 15 | 13.5 | 75 |
