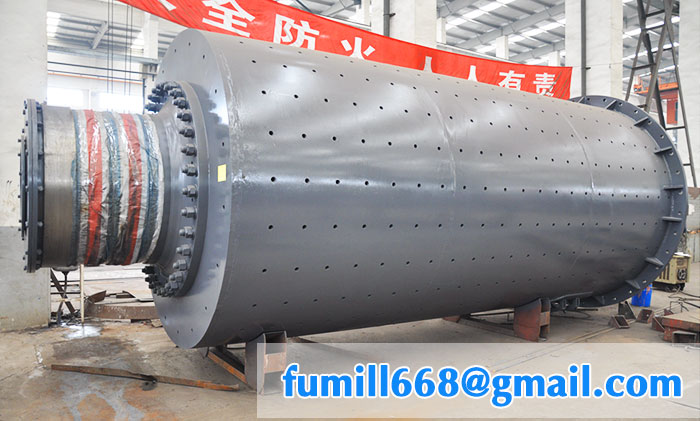

Dry type ball mill has no water in the production, which is of straight cylinder with wind conducting device, dust discharging pipe and dust collector. We can design and manufacture other type of ball mill according to the customer's requirement, or by the customer's mineral sample, capacity and size dimension. By making ore grinding test and calculation, we can confirm the suitable model and type, and design the best working condition of the ball mill, making them that they have not only no functional shortage and also ensuring the capacity and size requirement.
Main Technical Parameters of Dry Ball Mill:
Model | Shell Size （mm） |
Effective Volume （m3） |
Grinding Media Weight （t） |
Rotate Speed （r/min） |
Power （Kw） |
Discharge Size （㎜） |
Output （t/h） |
Weight （kg） |
Remark |
| Dia×Length | |||||||||
| GMQG1530 | 1500×3000 | 4.0 | 8 | 27.6 | 75 | 0.8-0.074 | 12-2.8 | 15500 | 380V |
| GMQG1535 | 1500×3500 | 4.6 | 11 | 27.6 | 75-90 | 0.8-0.074 | 14-3.4 | 16300 | 380V |
| GMQG1830 | 1800×3000 | 6.5 | 13 | 25.3 | 132 | 0.8-0.074 | 21-4.8 | 28200 | 380V |
| GMQG1835 | 1800×3500 | 7.58 | 16 | 25.3 | 160 | 0.8-0.074 | 25-5.8 | 30800 | 380V |
| GMQG1840 | 1800×4000 | 8.65 | 17.3 | 25.3 | 185 | 0.8-0.074 | 28-6.6 | 33400 | 380V |
| GMQG1845 | 1800×4500 | 9.75 | 19.5 | 25.3 | 210 | 0.8-0.074 | 31-7.2 | 36200 | 380V |
| GMQG2122 | 2100×2200 | 6.7 | 14.7 | 23.8 | 160 | 0.8-0.074 | 24-5.3 | 43200 | 380V |
| GMQG2130 | 2100×3000 | 9.2 | 17 | 23.8 | 185 | 0.8-0.074 | 26-6.0 | 46800 | 380V |
| GMQG2136 | 2100×3600 | 11.0 | 19 | 23.8 | 210 | 0.8-0.074 | 29-6.5 | 49100 | 380V |
| GMQG2140 | 2100×4000 | 12.2 | 20.5 | 23.8 | 220 | 0.8-0.074 | 32-7.2 | 50200 | 380V |
| GMQG2145 | 2100×4500 | 13.8 | 22 | 23.8 | 250 | 0.8-0.074 | 36-8.1 | 51800 | 380V |
| GMQG2424 | 2400×2400 | 9.8 | 20 | 22.8 | 220 | 0.8-0.074 | 32-6.6 | 54800 | 380V |
| GMQG2430 | 2400×3000 | 12.2 | 25 | 22.8 | 250 | 0.8-0.074 | 38-7.5 | 57800 | 380V |
| GMQG2436 | 2400×3600 | 14.6 | 30 | 22.8 | 280 | 0.8-0.074 | 42-8.5 | 60800 | 380V |
| GMQG2440 | 2400×4000 | 16.2 | 33 | 22.8 | 355 | 0.8-0.074 | 47-9.5 | 63800 | 380V |
| GMQG2445 | 2400×4500 | 18.2 | 37 | 22.8 | 400 | 0.8-0.074 | 55-10.5 | 66300 | 380V |
| GMQG2721 | 2700×2100 | 10.7 | 24 | 21.7 | 280 | 3.0-0.074 | 84-8.5 | 66400 | 6-10KV |
| GMQG2727 | 2700×2700 | 13.8 | 29 | 21.7 | 315 | 3.0-0.074 | 105-9.0 | 71700 | 6-10KV |
| GMQG2730 | 2700×3000 | 15.3 | 32.5 | 21.7 | 355 | 3.0-0.074 | 120-10 | 77300 | 6-10KV |
| GMQG2736 | 2700×3600 | 18.4 | 39 | 21.7 | 400 | 3.0-0.074 | 145-12 | 82400 | 6-10KV |
| GMQG2740 | 2700×4000 | 20.5 | 43 | 21.7 | 450 | 3.0-0.074 | 159-13 | 84730 | 6-10KV |
| GMQG2745 | 2700×4500 | 23.0 | 50 | 21.7 | 500 | 3.0-0.074 | 180-15 | 89100 | 6-10KV |
| GMQG3231 | 3200×3100 | 22.65 | 46.9 | 18.6 | 500 | 3.0-0.074 | 182-16 | 139000 | 6-10KV |
| GMQG3236 | 3200×3600 | 26.20 | 52 | 18.6 | 560 | 3.0-0.074 | 190-19 | 143000 | 6-10KV |
| GMQG3240 | 3200×4000 | 29.2 | 57 | 18.6 | 630 | 3.0-0.074 | 210-22 | 147000 | 6-10KV |
| GMQG3245 | 3200×4500 | 32.8 | 65 | 18.6 | 710-800 | 3.0-0.074 | 235-29 | 151000 | 6-10KV |
| GMQG3254 | 3200×5400 | 39.2 | 81.6 | 18.6 | 800-1000 | 3.0-0.074 | 280-35 | 161000 | 6-10KV |
| GMQG3640 | 3600×4000 | 35.6 | 75 | 17.3 | 800 | 3.0-0.074 | 230-25 | 185000 | 6-10KV |
| GMQG3645 | 3600×4500 | 40.8 | 88 | 17.3 | 1000 | 3.0-0.074 | 259-29 | 190000 | 6-10KV |
| GMQG3650 | 3600×5000 | 45.3 | 96 | 17.3 | 1120 | 3.0-0.074 | 288-35 | 200000 | 6-10KV |
| GMQG3660 | 3600×6000 | 54.4 | 117 | 17.3 | 1250-1500 | 3.0-0.074 | 310-38 | 220000 | 6-10KV |
| GMQG3685 | 3600×8500 | 79.0 | 144 | 17.3 | 1800 | 3.0-0.074 | 450-50 | 260000 | 6-10KV |
