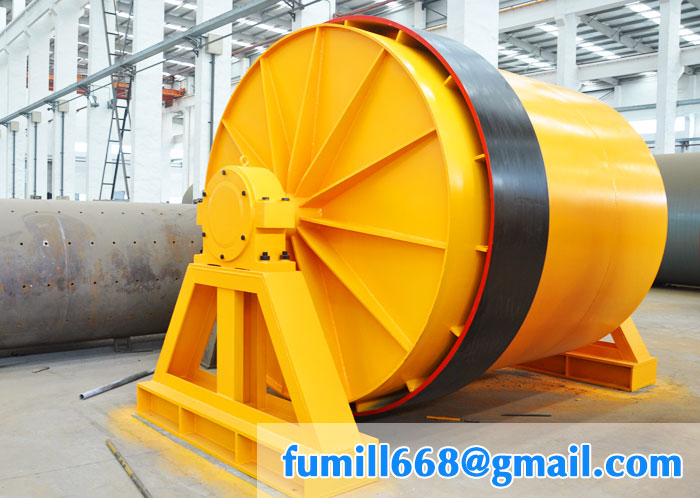

Ceramic Ball Mill is mainly used for mixing, milling of the material, the fineness even saving force. Not only the wet mill, but also wet mill. The machine could use the different line according to the product requirement to satisfy different requirement. The milling fineness depends on the milling time, the motor start by the coupling reduce voltage, lower the starting electricity, the structure is divided into integral type and freestanding type, advantages of product is lower investment, energy saving, structure novelty, simply operated, used safely, ability even etc. It is suitable for mixing and milling of the general and especial material. User could choose the proper type and line, media material depend on material ratio, rigidity, and output size etc.
Main Technical Parameters of Ceramic Ball Mill:
| Model | Loading Weight (ton/time) |
Rotate Speed (r/min) |
Reference Power（KW） | Liner Material |
| 600×700 | 0.05 | 50 | 2.2 |
Ceramics, Silica, Rubber, Metal(Equipped power will be a little different according to the liner material and the processed material) |
| 800×600 | 0.075 | 42 | 3 | |
| 900×1200 | 0.2 | 38.5 | 5.5 | |
| 1300×1500 | 0.5 | 33 | 7.5 | |
| 1500×1800 | 1.2 | 28.5 | 11 | |
| 1800×2000 | 1.5 | 24 | 15 | |
| 2600×2800 | 5 | 16.5 | 37 | |
| 3000×3800 | 10 | 14.5 | 57.2 | |
| 3200×4600 | 15 | 13.5 | 75 |
