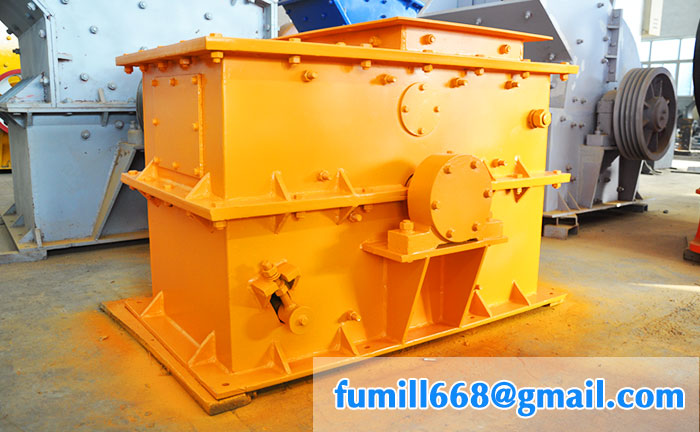

Ring Hammer Crusher

This series of machine broke materials through the high-speed rotating hammer body and collision the material surface,it has a simple structure, large crushing ratio, high production efficiency and other characteristics,it can be used for dry and wet two forms crushing,it applies to mining, cement, coal, metallurgy, building materials, roads, fire and other departments chronology medium hardness and brittle materials. The device can change material particle size and adjust gap of article grate in accordance with user requirements, so it can meet different users' demand.

Characteristics of Ring Hammer Crusher:
This ring hammer crusher has simple structure、Convenient operation and maintenance、best-selling both in domestic and abroad,well received by users.
Main Purpose of Ring hammer crusher
Ring hammer crusher for crushing all kinds of hard and abrasive weak materials. The material compressive strength does not exceed of 100Mpa, Moisture content is less than 15%. Broken material is coal, salt, chalk, gypsum, brick, limestone etc. it also can broke fiber structure、more flexibility and toughness of the broken wood、paper、waste of asbestos cement、recycling of asbestos fibers and so on. Besides, Hammer crusher can be used not only in broken production line、sand production line system,but also can replace the cone crusher in the mineral processing production line.
The main working parts of ring hammer crusher is the rotor with a hammer (or hammer),rotor is composed of spindle, disk, pin and hammer. The motor drive the rotor with high-speed rotation in the broken cavity,materials from the up mouth feeder into the machine,it is crushed by high-speed movement of the hammer blow's impact, shear, grinding. Under the rotor, there is a screening plate, the crushed material whose size is smaller than the sieve can come out through the sieve, and the other material whose size is bigger than the sieve will still be combated and grinded by the hammer, finally through the plate out.
Main Technical Parameters of Ring Hammer Crusher:

Model Feed Size
(mm)
Discharge Size
(mm)
Capacity
(t/h)
Rotor Speed
(r/min)
Motor Weight(t) Overall Dimension (mm)
Model Power(Kw)
PCH0402 ≤200 ≤10-30 8-12 960 Y132M2-6 5.5 0.8 810x890x560
PCH0404 ≤200 ≤10-30 16-25 970 Y160L-6 11 1.05 980x890x570
PCH0604 ≤200 ≤10-30 22-33 970 Y180L-6 15 1.43 1050x1270x800
PCH0606 ≤200 ≤10-30 30-60 980 Y225M-6 30 1.77 1350x1270x1080
PCH0808 ≤250 ≤10-30 70-105 740 Y280M-8 45 3.6 1750x1620x1080
PCH1010 ≤300 ≤10-30 160-200 740 Y315M2-8 90 6.1 2100x2000x1340
PCH1016 ≤300 ≤10-30 300-350 740 JS-128-8 155 9.2 2700x2000x1350
PCH1216 ≤350 ≤10-30 620-800 740 Y450-8 355 15.0 4965x2500x1600
PCH1616 ≤400 ≤10-30 700-900 740 YKK5001-8 400 19.3 5365x2500x1680
