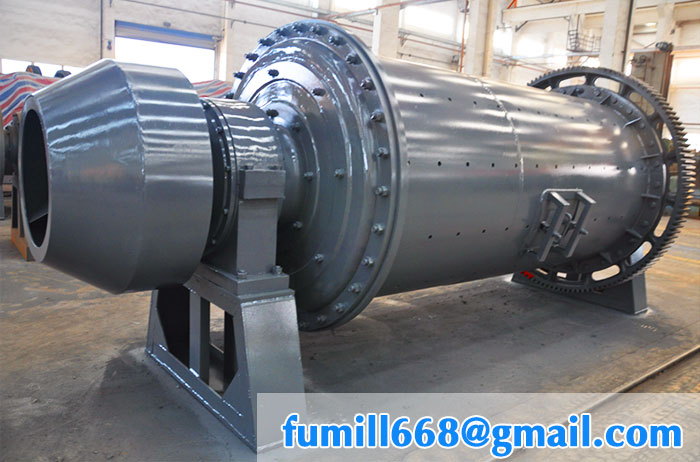

Grate Ball Mill

1. Grate liner, 2. Bearing inner cover, 3. Hollow shaft 4.dustpan shape liner 5.central liner, 6. Rib 7. Wedge block.
The grate ball mill is usually used in the first segment of the two stages, or place of discharging the rough ore.
The grate ball mill is roughly composed of the cylinder, cylinder liner,big gear ring, discharging grate,and ore feeding device. Except there is a discharging grate plate installed at the discharging end, all the other is similar with the overflow ball mill. The grate ball mill discharging cover head and grate plate have the structure as the drawing: grate liner, bearing inner cover, hollow shaft, dustpan liner, central liner, rib and wedge block.
In the head cover of the hollow shaft of the discharging end, it has bearing inner cover and discharging grate installed and the later is made from central liner, grate liner and dustpan liner etc. There are eight radial rib casted on the inner wall of the head cover, which divide the head cover into 8 fan rooms. There installed the dustpan liner inside each fan shape room, with the bolt fixed on the end cover. Finally the grate plate are installed on each fan room shaped by the dustpan liner. The grate liner has two kinds of structure: one is the group formed by two pcs, pressed by the wedge block, which get fixed tightly on head cover with the bolt getting through the rib. The central part are supported by the central liner to prevent them from declining and dropping off. The other kind is get two pcs into one block, fixing with bolt directly. The central liner is star shape, formed by two block, tightened on the rib with the bolt.
The hole on the grate liner is arranged at inclining direction. The wideth of the hole is getting bigger gradually to the discharging end, which can prevent the slurry from regorging and rough granularity from blocking. The slurry flow into the fan shape room through the hole on the grate plate from the lower part of the discharging end, and get passed up to the upper part along the cylinder rotating and discharged off the hole path. The hollow shaft neck has the grinding proof inner cover, with one end made of trumpet shape blade to lead the slurry to flow out of the mill.
As the slurry in this kind of mill is discharged through the grate plate, it is called the grate ball mill.

The characteristics of the grate ball mill:
1. The fast discharging speed, and high production capacity( 20~30% higher than overflow type, and so does power saving )
2. Less overgrinding phenomena--discharging at the lower horizontal level. Less slurry stored inside. And easy to discharge the grinded fine particles in time.
3. Much ball loading- not only big ball but also small ball, for the grate fence. Having the good grinding condition.
4. The complicated structure than overflow---multi grate fence, taking certain room and reducing the effective volume.
The grinded material are carried by the discharging grate plate in the grate ball mill, which has the compelling function, and fast discharging speed. The slurry level in the discharging end is lower than that of the lowest mother line level in the discharged shaft neck, so it is called the ore low level discharging. The mill has height difference from the material input end to the output end, and the slurry get through the mill with faster speed, discharging the grinded particles in time. As little slurry stored in the grate type ball mill and blocked by the grate plate, the mill can load more balls, easy to load the small ball. When the steel ball dropping off, the striking function lessened by the slurry resistence will be less. These causes make the production capacity and efficiency is higher than that of the overflow mill, with rough granularity finished product and not easy to get overcrushing.


Model
Shell Size(mm) Effective Volume
(m3)
Grinding Media Weight(t) Rotate Speed
(r/min)
Power
(Kw)
Discharge Size(㎜) Output(t/h) Weight(t) Remark
Dia×Length
GMQY1530

1500×3000

4.0

8.4

27.6

75

0.8-0.074

11-2.6

15.1

380V

GMQY1535

1500×3500

4.6

10

27.6

75-90

0.8-0.074

13.2-3.0

16.0

380V

GMQY1830

1800×3000

6.5

12

25.3

110-132

0.8-0.074

20-4.5

27.8

380V

GMQY1835

1800×3500

7.58

15

25.3

132-160

0.8-0.074

23-5.0

29.7

380V

GMQY1840

1800×4000

8.65

16

25.3

160-185

0.8-0.074

25-6.0

32.6

380V

GMQY1845

1800×4500

9.75

18

25.3

185-210

0.8-0.074

28-6.8

35.5

380V

GMQY2122

2100×2200

6.7

14.7

23.8

160

0.8-0.074

22-5.0

42.9

380V

GMQY2130

2100×3000

9.2

17

23.8

185

0.8-0.074

25-5.8

46.5

380V

GMQY2136

2100×3600

11

19

23.8

210

0.8-0.074

28-6.0

48.0

380V

GMQY2140

2100×4000

12.2

20.5

23.8

220

0.8-0.074

30-7.0

49.9

380V

GMQY2145

2100×4500

13.8

22

23.8

250

0.8-0.074

34-8.0

51.3

380V

GMQY2424

2400×2400

9.8

18.8

22.8

210

0.8-0.074

30-6.2

54.0

380V

GMQY2430

2400×3000

12.2

23

22.8

250

0.8-0.074

34-6.6

57.0

380V

GMQY2436

2400×3600

14.6

25

22.8

280

0.8-0.074

40.5-7.9

59.68

380V

GMQY2440

2400×4000

16.2

28

22.8

315

0.8-0.074

45-8.7

62.9

380V

GMQY2445

2400×4500

18.2

31

22.8

355

0.8-0.074

50-9.8

65.5

380V

GMQY2721

2700×2100

10.7

20

21.7

280

3.0-0.074

76-6.0

63.5

6-10KV

GMQY2727

2700×2700

13.8

25.5

21.7

315

3.0-0.074

98-7.8

66.7

6-10KV

GMQY2730

2700×3000

15.3

28.0

21.7

355

3.0-0.074

108-8.8

75.6

6-10KV

GMQY2736

2700×3600

18.4

34

21.7

355-400

3.0-0.074

130-10.5

81.8

6-10KV

GMQY2740

2700×4000

20.5

37

21.7

400-450

3.0-0.074

144-11.5

83.5

6-10KV

GMQY2745

2700×4500

23.0

42.5

21.7

500

3.0-0.074

180-13

87.6

6-10KV

GMQY3231

3200×3100

22.65

22.65

18.6

450

3.0-0.074

164-14.4

127

6-10KV

GMQY3236

3200×3600

26.20

26.2

18.6

500

3.0-0.074

171-17.1

131.0

6-10KV

GMQY3240

3200×4000

29.2

29.2

18.6

560

3.0-0.074

190-20

135.0

6-10KV

GMQY3245

3200×4500

32.8

61.0

18.6

630

3.0-0.074

228-22

139.0

6-10KV

GMQY3254

3200×5400

39.3

73.0

18.6

710

3.0-0.074

270-26

148.7

6-10KV

GMQY3640

3600×4000

35.6

67

17.3

710

3.0-0.074

210-20

165

6-10KV

GMQY3645

3600×4500

40.8

76

17.3

800-1000

3.0-0.074

233-26

170

6-10KV

GMQY3650

3600×5000

45.3

86

17.3

1120

3.0-0.074

260-31.5

180

6-10KV

GMQY3660

3600×6000

54.4

102

17.3

1250

3.0-0.074

280-34

200

6-10KV

GMQY3685

3600×8500

79.0

131

17.3

1500

3.0-0.074

400-45

240

6-10KV
